High efficient Spot Welding Accessories KCF Sleeve KCF Guide Pin
基本特性
原産地:江蘇、中国（本土）
ブランド名:BLM-kcf-1
取引プロパティ
最低注文数量:5 PC
価格:FobShanghai usd 3.5-5/pc
標準梱包:規制と顧客の要求に従って詰め込まれ、ラベル付けされています。貯蔵または輸送中に引き起こされる可能性のある損害を避けるために、偉大な注意が払われます。
納期:10~30日 お客様の要求と量に応じて
支払い条件:ウエスタンユニオン、L/C、T/T
補給能力:1ヶ月あたりの3000 pc/pcs
仕様
| 名前: | KCFの袖 | 起源の場所: | 江蘇、中国（本土） |
|---|---|---|---|
| タイプ: | kcfアクセサリー | 応用: | 抵抗溶接 |
| 配達: | 顧客の条件および量に応じる7-10日 | 価格期間: | ex-work、fob、cnf、cfr、cif、fca、ddp、ddu |
| サイズ: | 標準かカスタム化 | 材料: | KCF |
| 分野: | スポット溶接 | 色: | 黒 |
| ハイライト | KCF sleeve spot welding accessory,KCF guide pin welding tool,high efficiency KCF welding parts |
||
製品説明

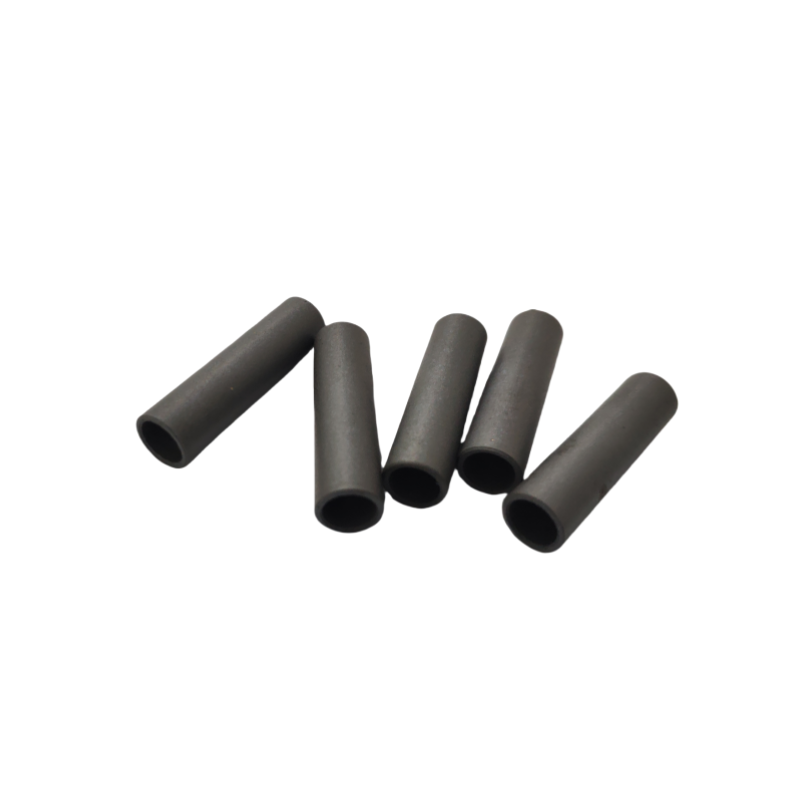

High Efficiency Spot Welding Accessories - KCF Sleeve & KCF Guide Pin
Bloom's product range includes electrode holders, tips, KCF guide pins and sleeves, tip dresser and cutter blades - all designed to enhance the efficiency and quality of your welding operations. These components are commonly used in spot welding applications, particularly in the automotive industry, providing insulation and protection for stud welding electrodes during the welding process.
Standard Sizes Available
M4, M5, M6, M8, M10, M12, and 7/16 KCF sleeves are always in stock. Custom specifications can be manufactured according to your technical drawings.

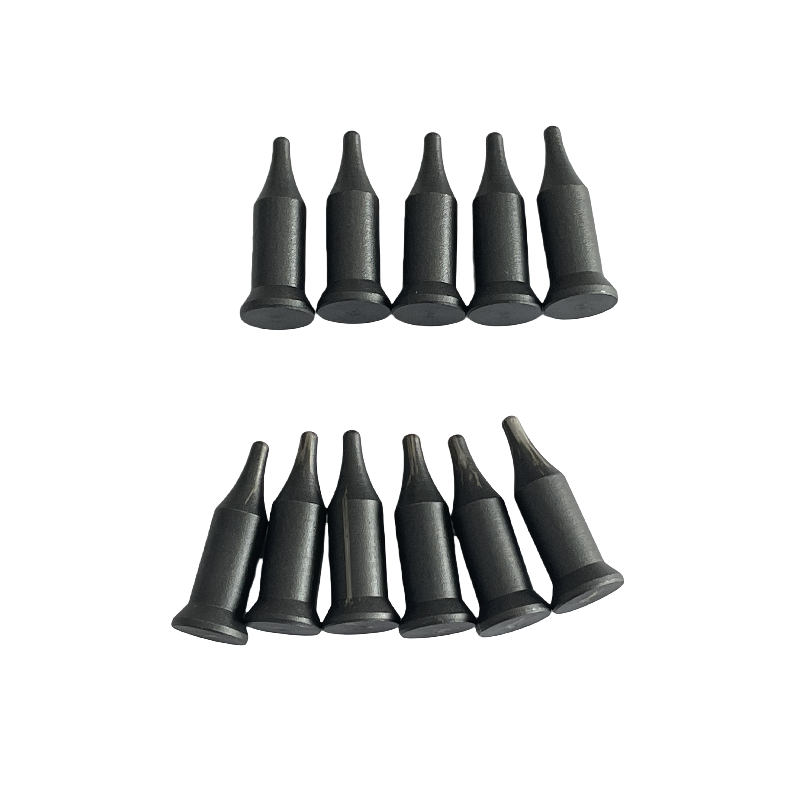

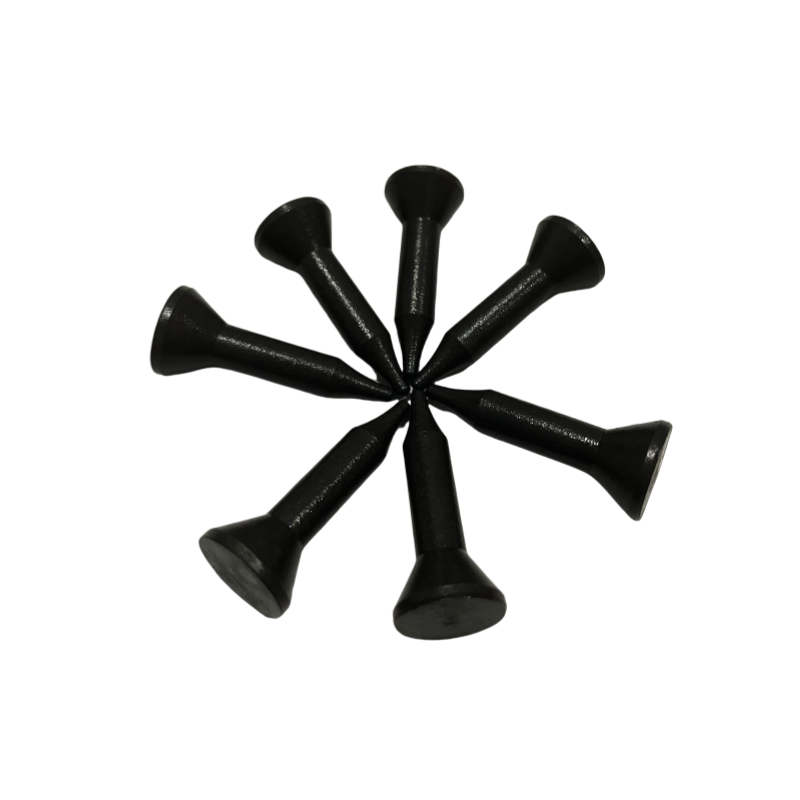

KCF Guide Pin Technical Specifications
| Pin Material | KCF, Si3N4, Ceramic, Stainless Steel |
|---|---|
| KCF Pins Standard Model | M4, M5, M6, M8, M10, M12... |
| Application | Projection welding, nut welding, stud welding |
| Customization | Yes |
Product Advantages
- High temperature strength
- Superior thermal shock resistance
- Excellent wear resistance
- Mechanical fatigue and creep resistance
- Excellent non-wetting property with good oxidation resistance

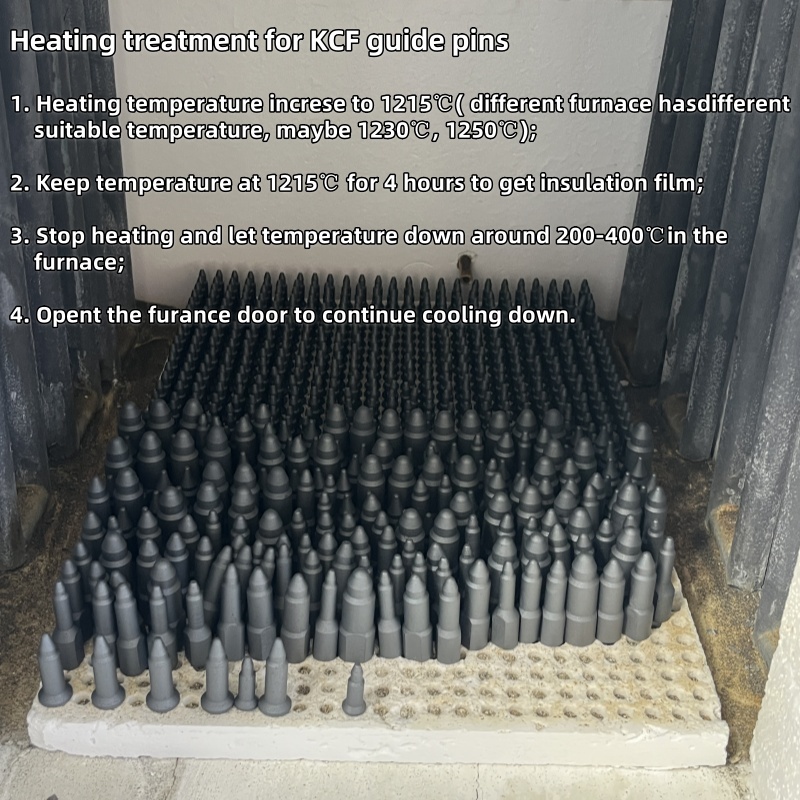

Heating Treatment for KCF Pin
Standard Models for KCF Guide Pins
| Model | A | B | C | D | E | F | G | L | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|
| KCF-M4-(B) | 3.2 | 4～7 | 10 | 5 | 2 | 22 | 4 | 31 | 2.5 | 9 |
| KCF-M5-(B) | 4.1 | 5～8 | 10 | 6 | 2.5 | 22 | 4 | 32 | 3 | 13.3 |
| KCF-M6-(B) | 4.9 | 6～9 | 10 | 7 | 2.5 | 22 | 3 | 32 | 3.5 | 15.5 |
| KCF-M8-(B) | 6.8 | 8～11 | 12 | 8 | 3 | 23 | 3 | 34 | 5 | 17.5 |
| KCF-M10-(B) | 8.5 | 10～13 | 15 | 10 | 3.5 | 24 | 3 | 37 | 7 | 30.5 |
| KCF-M7/16-(B) | 9.7 | 11～14 | 16 | 12 | 4 | 24 | 3 | 39 | 8 | 37.5 |
| KCF-12-(B) | 10.4 | 12～15 | 16 | 12 | 4 | 24 | 3 | 39 | 9 | 41 |
Company Profile
Bloom (Suzhou) Materials Co., Ltd is a professional supplier of spot welding machine accessories, dedicated to providing high-quality products and excellent services to meet your welding needs. Our comprehensive product range is designed to enhance the efficiency and quality of your welding operations.
Package and Shipment
