High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding

5個
MOQ
FobShanghai usd 10~20/pc
価格
High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
名前: タングステン入り電極
起源の場所: 江蘇省、中国
タイプ: スポット溶接アクセサリ
応用: 抵抗溶接
配達: 25日は顧客の要件と数量に応じて異なります
価格条件: 元勤務先、FOB、CNF、CFR、CIF、FCA、DDP、DDU
サイズ: 標準またはカスタマイズ
材料: CuCrZrとタングステン
分野: スポット溶接
色: 黄色
ハイライト:

Tungsten electrode welding accessories

,

Resistance welding tungsten electrode

,

Stable spot welding electrode

基本情報
起源の場所: 江蘇省、中国 (本土)
ブランド名: BLM
モデル番号: BLM-S
お支払配送条件
パッケージの詳細: 規制および顧客の要求に従って梱包およびラベルが貼られています。保管または輸送中に発生する可能性のある損傷を避けるために細心の注意が払われます。
受渡し時間: 25 日はクライアントの要件と数量に応じて異なります
支払条件: ウェスタンユニオン、L/C、T/T
供給の能力: 30000 個/個/月
製品の説明
Resistance Welding Electrode with Tungsten
Product Description
Our tungsten electrodes are made of 99.95% high-purity tungsten with precision inlay technology. Featuring great heat resistance, stable electrical performance and sturdy structure, they work reliably under high-temperature, heavy-current and thermal shock conditions. Strict quality control ensures high purity and stable performance for precision welding, metal machining and electrical industrial applications.
Key Performance Attributes

  • Ultra-high Material Purity: Adopts 99.95%+ high-purity tungsten with few impurities, ensuring stable and long-lasting working performance.
  • Industry-leading Thermal Stability: Boasting 3410°C ultra-high melting point, the electrode maintains structural stability without deformation or melting under extreme heat.
  • Full-temperature Hardness Stability: Keeps high hardness and wear resistance at all temperatures, reducing wear and extending service life.
  • Outstanding Chemical Inertness: Features low metal reactivity to resist oxidation and corrosion for clean processing and low loss.
  • Stable Electrical Performance: Delivers steady high resistance for controllable current and discharge, supporting precise machining and welding.
  • Upgraded Structural Toughness: Optimized inlay structure improves shock and crack resistance, enabling stable continuous production.
Technical Specifications
Composition
High-purity Tungsten (W)
Purity Level
≥99.95%
Melting Point
3410 °C (Max among industrial metals)
Chemical Reactivity
Low reactivity with other metals
Electrical Characteristics
High-resistance design with stable and consistent electrical performance

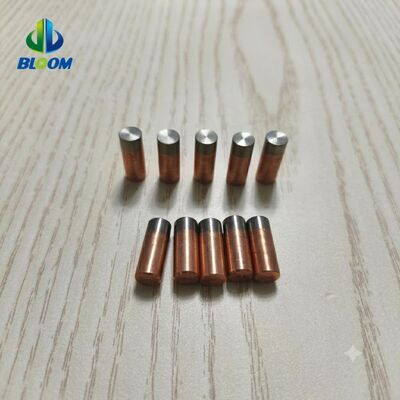

Product photos
High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding 0

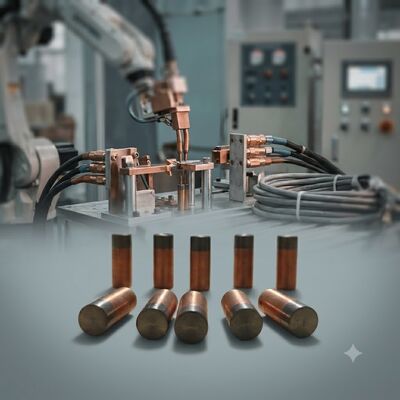

Product process
High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding 1
Company Profile

Bloom (Suzhou) Materials Co., Ltd specializes in supplying spot welding machine accessories, offering high-quality products and reliable services to support all your welding requirements. Our product lineup features electrode holders, tips, KCF guide pins and sleeves, as well as tip dressers and cutter blades. Each product is engineered to improve the performance and output quality of your welding processes.

High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding 2

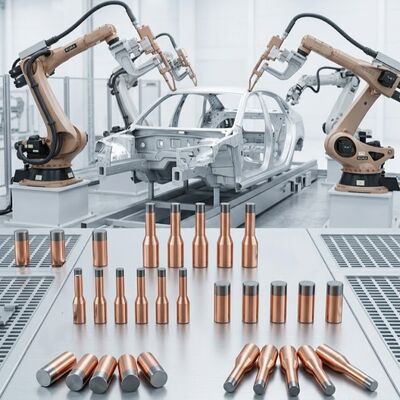

Industrial Applications

Our tungsten inlaid electrodes are vital components across several high-precision sectors:

  • Precision Welding: Ideal for TIG and plasma welding, delivering stable arcs on titanium, stainless steel and superalloys.
  • Electronics & Electrical: Widely applied in EDM, heavy-current contacts and high-temperature electrode systems.
  • Metallurgy & Foundry: Resist corrosion and extreme heat, suitable for electrolysis and molten metal processing.
  • Advanced Manufacturing: Reliable for long-term operation in thermal processing and precision machinery.
  • Aerospace & New Energy: Used for high-performance alloy components and core electrical equipment.
High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding 3

Package

High-Purity 99.95% Tungsten Electrode with 3410°C Melting Point for Stable Electrical Performance in Resistance Welding 4

Shipping Information
Shipping and packaging of welding electrodes
