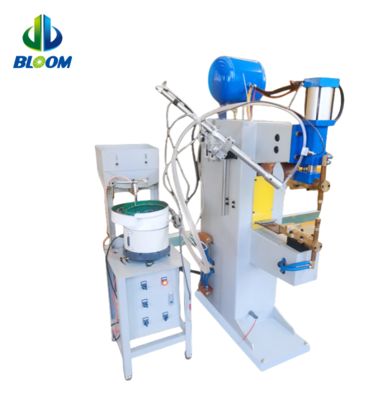

This nut spot welder is equipped with a conveying system compatible with M5-M12 standard and non-standard nuts. Utilizing electromagnetic adsorption/slide-rod conveying combined with vibration-based anti-reverse screening, it achieves PLC-controlled pneumatic transfer (5-45 nuts/minute, ≥98% accuracy). The device supports both standalone and linked operation modes, and features centralized multi-machine control. When synchronized with the welder, it enables a fully automated "start-feed-weld" process. Characterized by precision, high efficiency, reverse-proof screening, low energy consumption, and stable performance, it is compatible with mature techniques from both Western and Asian markets. Operating on 220V/50Hz power (80W) and a 0.5MPa air source, it significantly enhances nut welding efficiency in the automotive and hardware industries.
| Name | Automatic Nut Feeder /Vibratory Bowl Feeder |
| Material | Aluminum(AL7075), Stainless Steel(SUS304) |
| Condition | Brand new |
| Power |
AC220V
|
|
Frequency |
50 / 60Hz |
|
Air pressure |
0.4 ~ 0.7Mpa |
|
Feeding capacity |
30 ~ 50 pieces/min |
|
Feeding source distance |
200mm |
|
Applicable nut size
|
M5–M12 (each nuts feeder can transfer one kind nut)
|
|

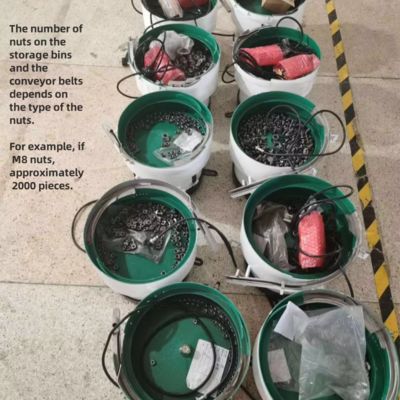

Nut capacity
|
Approximately 2000 pieces , including storage silo
|
|
Total weight:
|
80kg
|
|
Original |
China |
|
Package |
Wooden case |
|
Package size |
150X150X120 cm |
Vibrating Bowl Feeders are the most common devices used to feed individual parts in Industrial Assembly Automation Applications.They are utilized in many industries including automotive, electronic, food, Fast Moving Consumable Goods (FMCG), packaging and metal working industries. It also serves other industries such as glass, foundry, steel, construction, recycling, pulp and paper, and plastics.
